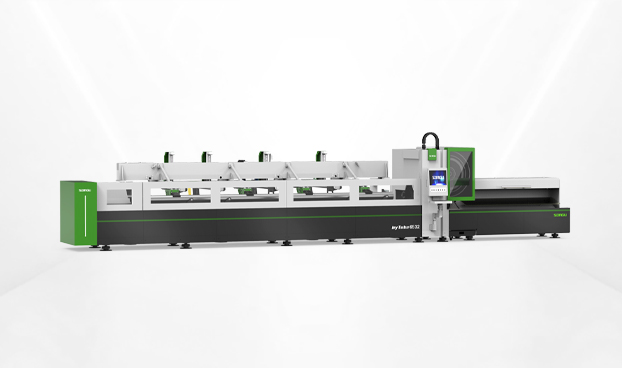

HyTube Series 2-Chuck Tube Laser

High dynamic laser head, stable and accurate;
High precision servo proportional valve, precise control of cutting auxiliary gas pressure and chunk clamping force to achieve the best cutting effect;
Full automatic loading function, high efficiency (optional);
Automatic cross section identification system (optional), automatically match the tube types and processing data;
Professional tube cutting software helps to save material and ensure efficiency cutting;
FRIENDESS FSCUT5000B numerical control system based on Windows system,special platform of laser tube cutter,integrated with special function module of laser cutting control, powerful.

TECHNICAL DETAILS OF HyTube Series Tube Laser Cutter
PARAMETERS	HyTube6512	HyTube6522	HyTube6532
Working area	φ10≤ round pipe ≤φ120, □10≤ square pipe ≤□80, rectangular pipe ≤100x50, channel steel ≤10#, I-steel ≤10#	φ15≤ round pipe ≤φ210, □15≤ square pipe ≤□150, rectangular pipe ≤180x100, channel steel ≤20#, I-steel ≤20#	φ15≤ round pipe ≤φ310, □15≤ square pipe ≤□220, rectangular pipe ≤250x150, channel steel ≤30#, I-steel ≤30#
Max. load of chuck	80kg	200kg	400kg
Applicable power	3000~12000W	3000~12000W	3000~12000W
Repeated positioning accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
Max positioning acceleration	1.0G	1.0G	1.0G
Positioning accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m
Max coordinated speed	100m/min	100m/min	100m/min
Weight	6300kg	6400kg	6500kg
Overall dimension	12250×2350×2600mm	12250×2350×2600mm	12250×2350×2600mm
