Features
- Laser Cleaning machine has high efficiency, time saving, reduces labour costs.
- Strong anti-interference, safe and stable, ergonomic design, easy to operate. Button type protective lens, pull-out focusing lens and protections are easy.
- The control box is designed in one piece, easy to install, the cavity is water cooled, stable and durable, good controllability, high flexibility, easy to realize precise cleaning of selected areas and realtime.
- Multiple cleaning modes: line, circle, ellipse, snowflake, bull head, hot wheel, triangle.
- Compatible with all systems: dual-axis welding system+cleaning, light shutter +double-button safety light design to ensure safe production.
- Intelligent operation there are three cleaning schemes: deep, standard and non-destructive.
Technical Specifications

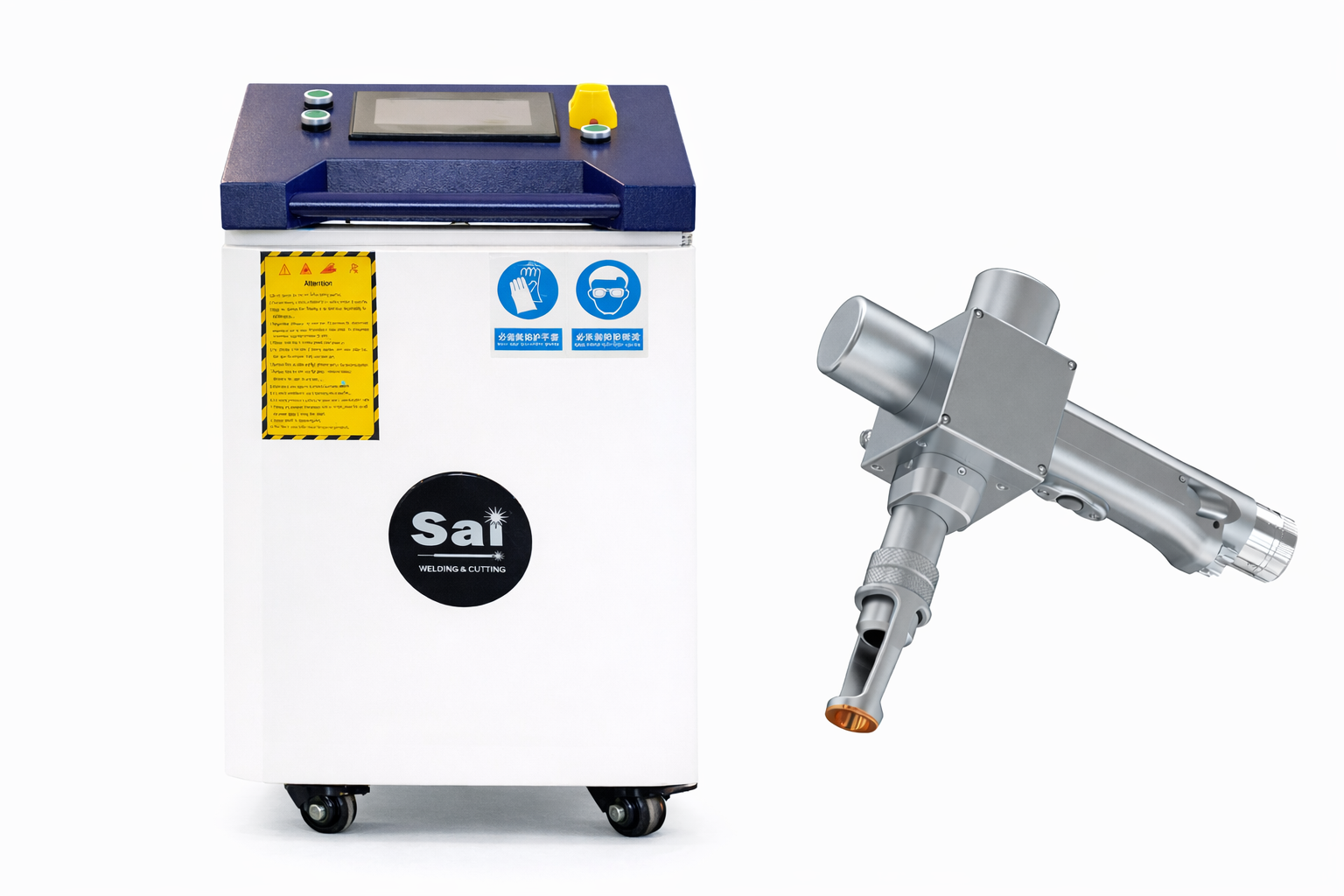

| Sai Handheld Laser Cleaning Machine | |||
|---|---|---|---|
| MODEL | DS-1000 | DS-1500 | DS-2000 |
| Input Voltage | - | AC 220V ±10% 50/60Hz | AC 220V |
| Max Laser Power | 1000 W | 1500 W | 2000 W |
| Laser Source | Max | Max | Max |
| Interface | QBH | QBH | QBH |
| Laser Wave Length | 1064nm ±10nm | 1064nm ±10nm | 1064nm ±10nm |
| Chiller Rated Power | 2.1 KW | 2.1 KW | 2.1 KW |
| Cleaning Torch | Single Cleaning head/Wobble Cleaning Head 0.556KW | ||
| Cleaning Mode | - | 1 Type | 7KW |
| Cleaning Width | 0-300mm | 0-300mm | 0-300mm |
| Scan Speed | 20000 mm/s | 20000 mm/s | 20000 mm/s |
| Collimating Length | 40 mm | 40 mm | 40 mm |
| Focusing Length | 600/800 mm | 600/800 mm | 600/800 mm |
| Focusing Adjustment | -10mm ± +10mm | -10mm ± +10mm | -10mm ± +10mm |
| Input Power | 10.55 KW | 10.55 KW | 10.55 KW |
| Power Consumption | ≤ 5KW | ≤ 6KW | ≤ 7KW |
| Fiber Laser cable Length | 10/15m | 10/15m | 10/15m |
| Fiber core diameter | 50 μm | 50 μm | 50 μm |
| Protect Gas | Argon/Nitrogen ≥ 0.5pa | ||
| Operation Environment Temperature | 10 - 40°C | 10 - 40°C | 10 - 40°C |
| Cooling | Water cooling | Water cooling | Water cooling |
| Net Weight | 145 KG | 150 KG | 160 KG |
| Machine Size | 1100 x 555 x 1095 mm | 1100 x 555 x 1095 mm | 1100 x 555 x 1095 mm |
| Warranty | Source 2 Years & Head 1 Year | Source 2 Years & Head 1 Year | Source 2 Years & Head 1 Year |
