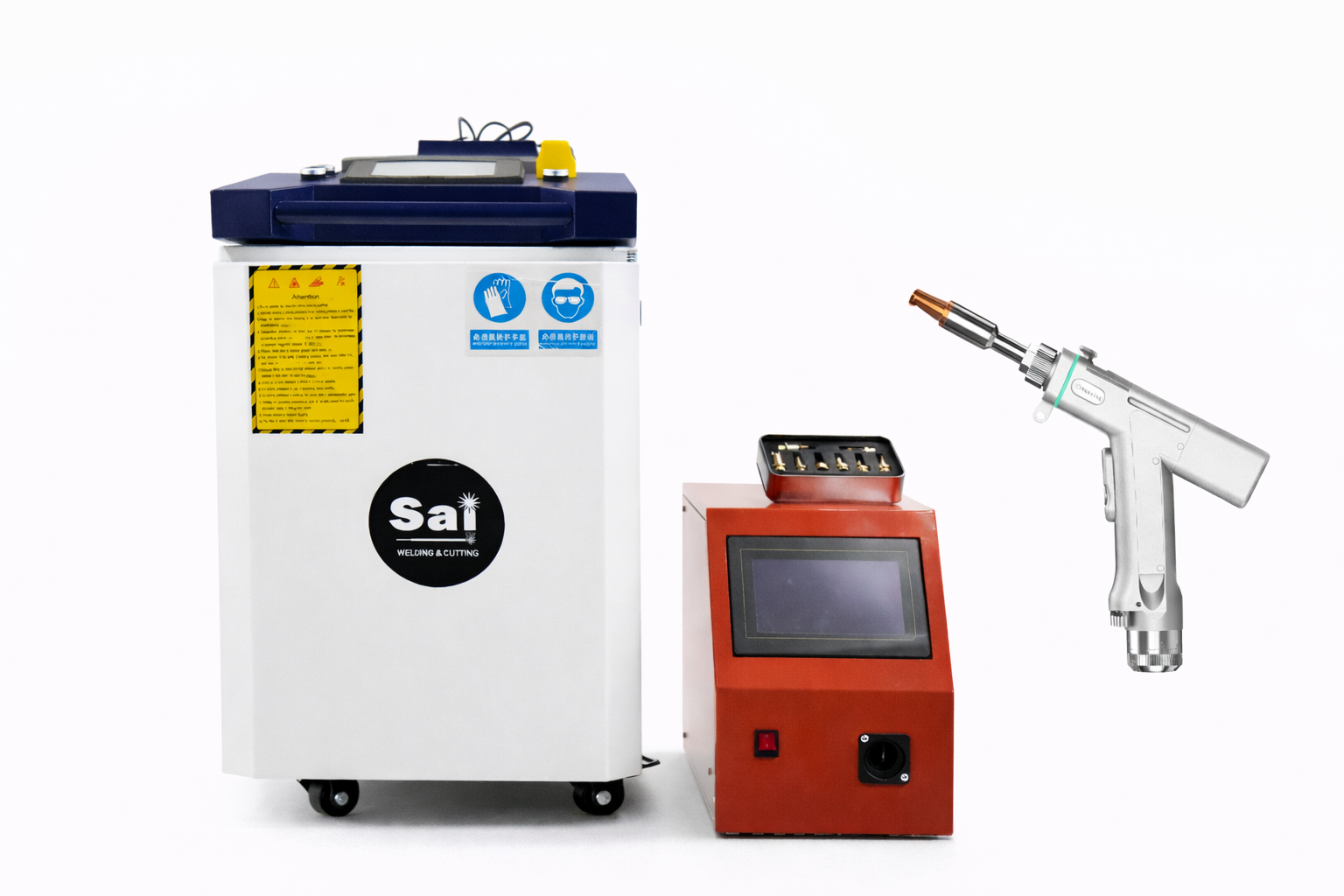

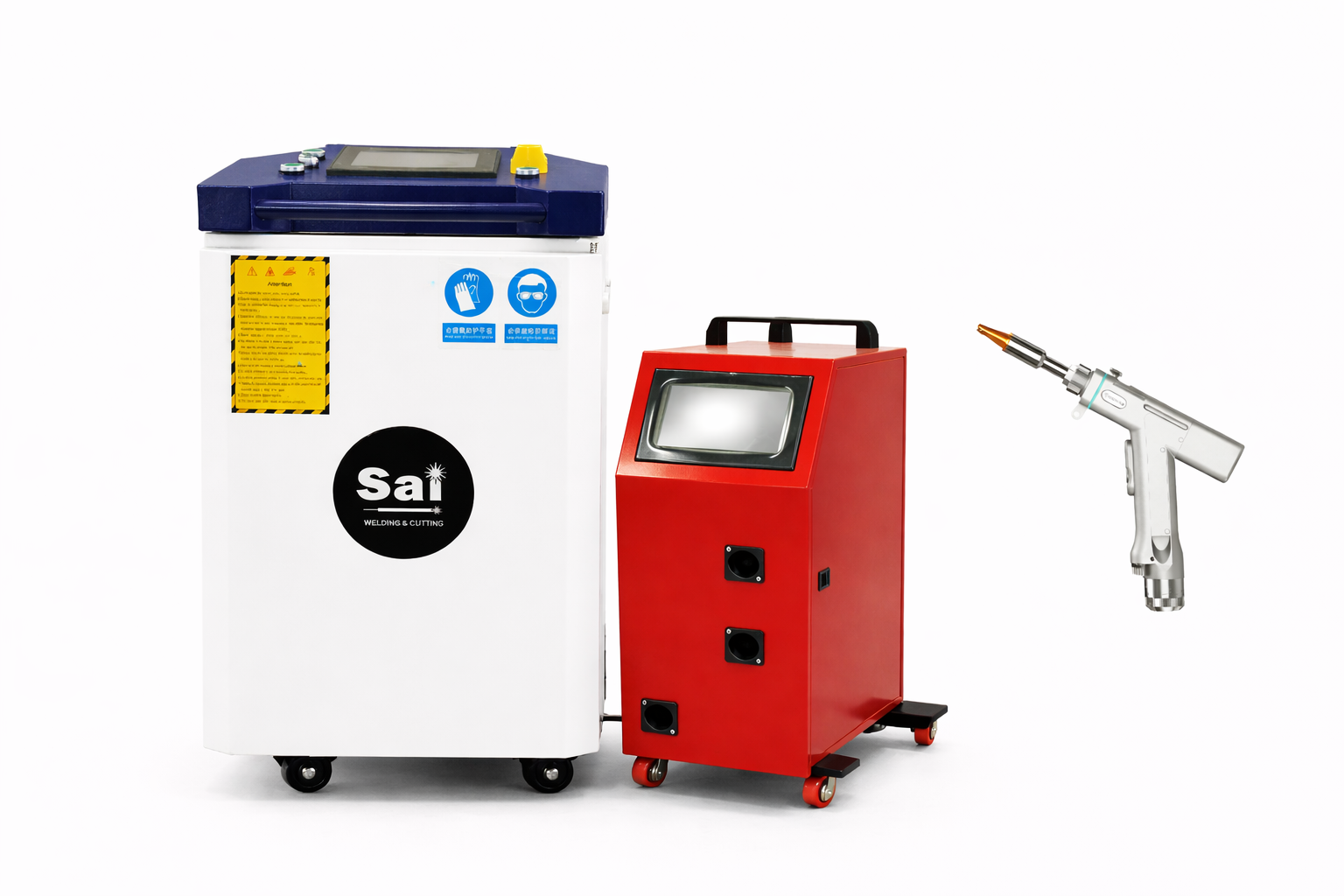

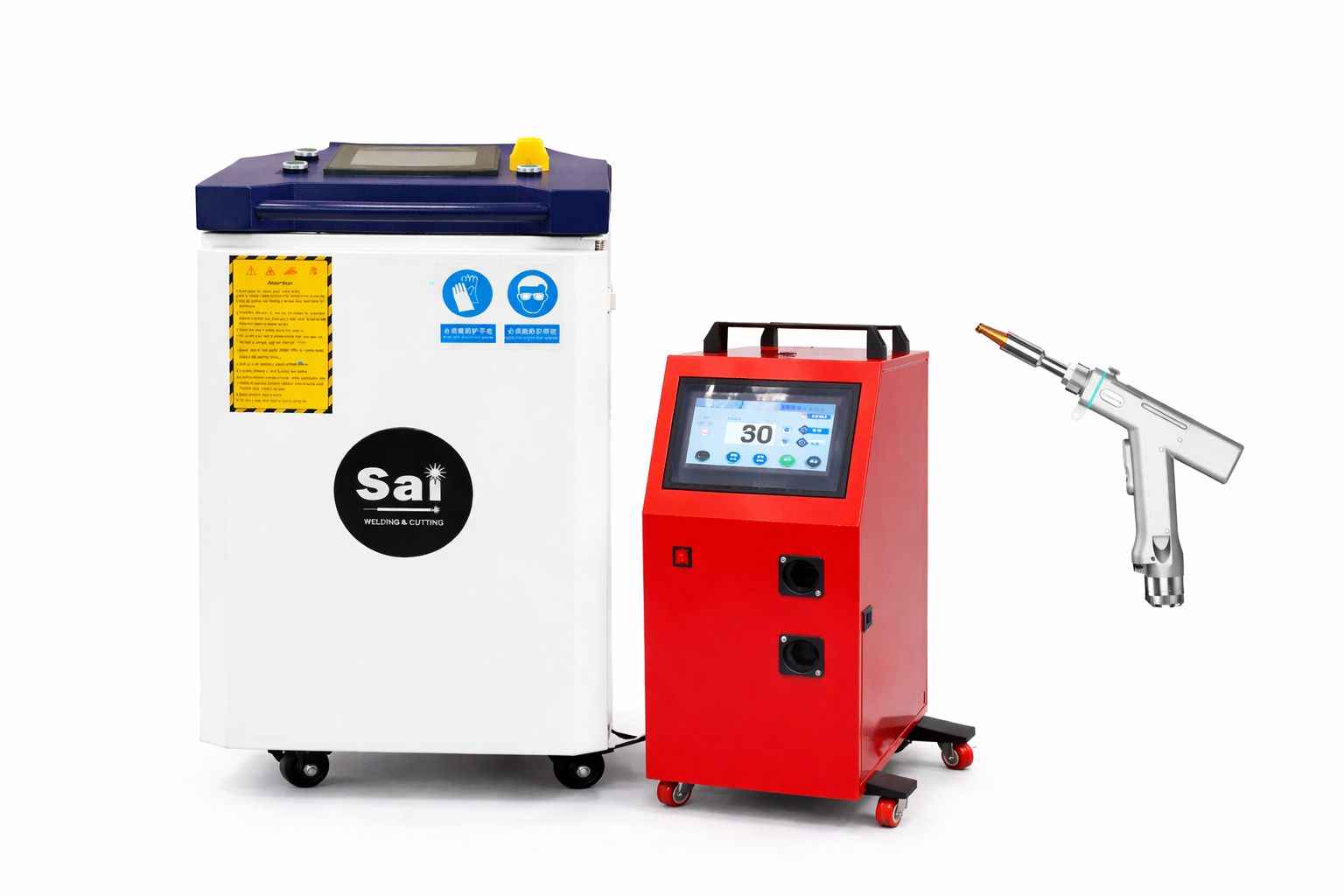

Laser Welding Machines
Laser Welding Machines
Features
- Equipped with self-invented wobble welding head, we developed the wobble welding mode.
- Our products remedy the inadequacies of the traditional laser product switch the alternating spot size and the high fault tolerance, obtaining a better formation of weld.
- Different welding manners with various welding heads can be realized through the simple operation.
TECHNICAL DETAILS OF LASER MACHINE
| TECHNICAL DETAILS OF LASER MACHINE | |
|---|---|
| LASER POWER | 1000w/1500w/2000w |
| LASER SOURCE | MAX BRAND |
| LASER TYPE | FIBER |
| LASER WAVELENGTH | 1070 NM |
| WELDING HEAD | QILIN / GETASST |
| WATER CHILLER POWER RATING | 1.8 KW |
| POWER REQUIRED | 220V ±20% /AC /50HZ |
| POWER CONSUMPTION | 5 KW / 7KW |
| FIBER OPTICAL CABLE LENGTH | 10 M |
| FIBER CORE DIAMETER | 50 MICRON |
| COOLING WAY | WATER COOLING |
| WARRANTY | LASER HEAD - 1 YEAR, LASER SOURCE - 2 |
| CONTROL SYSTEM | GETASST / QILIN |
| COOLING SYSTEM | HANLI |
DETAILS OF LASER WELDING HEAD
| DETAILS OF LASER WELDING HEAD | |
|---|---|
| Brand | GETASST / QILIN |
| Max laser power | 1000 W / 1500 W / 2000W / 3000 W |
| Spot size | Width 5mm |
MACHINE DETAILS
| MACHINE DETAILS | |
|---|---|
| Dimension | 1100*555*1095 mm |
| Net Weight | 145/150/160 Kgs |
| Gross weight | 210 Kgs |
| Package size | 1150 *700*1200 mm |
| Package Type | Export Fumigation-free Wooden Box |
WELDING CAPACITY
| MODEL | Carbon Steel | Aluminum Alloy | Stainless Steel | Galvanized Sheet |
|---|---|---|---|---|
| 1000W | <2mm | <1mm | <2mm | <1mm |
| 1500W | 4mm | 1mm | 4mm | <1mm |
| 2000W | 6mm | <3mm | 6mm | 3mm |
| 3000W | 8mm | 4mm | 8mm | 4mm |
