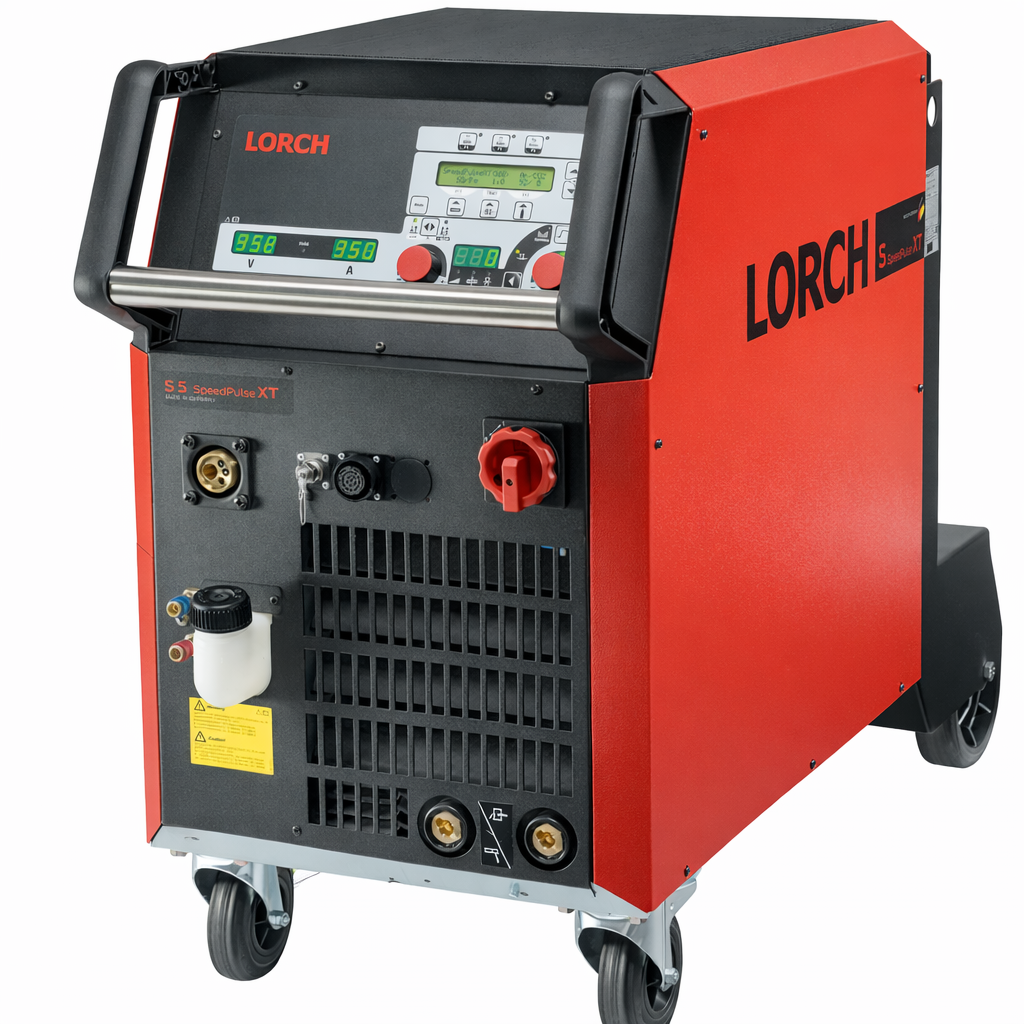

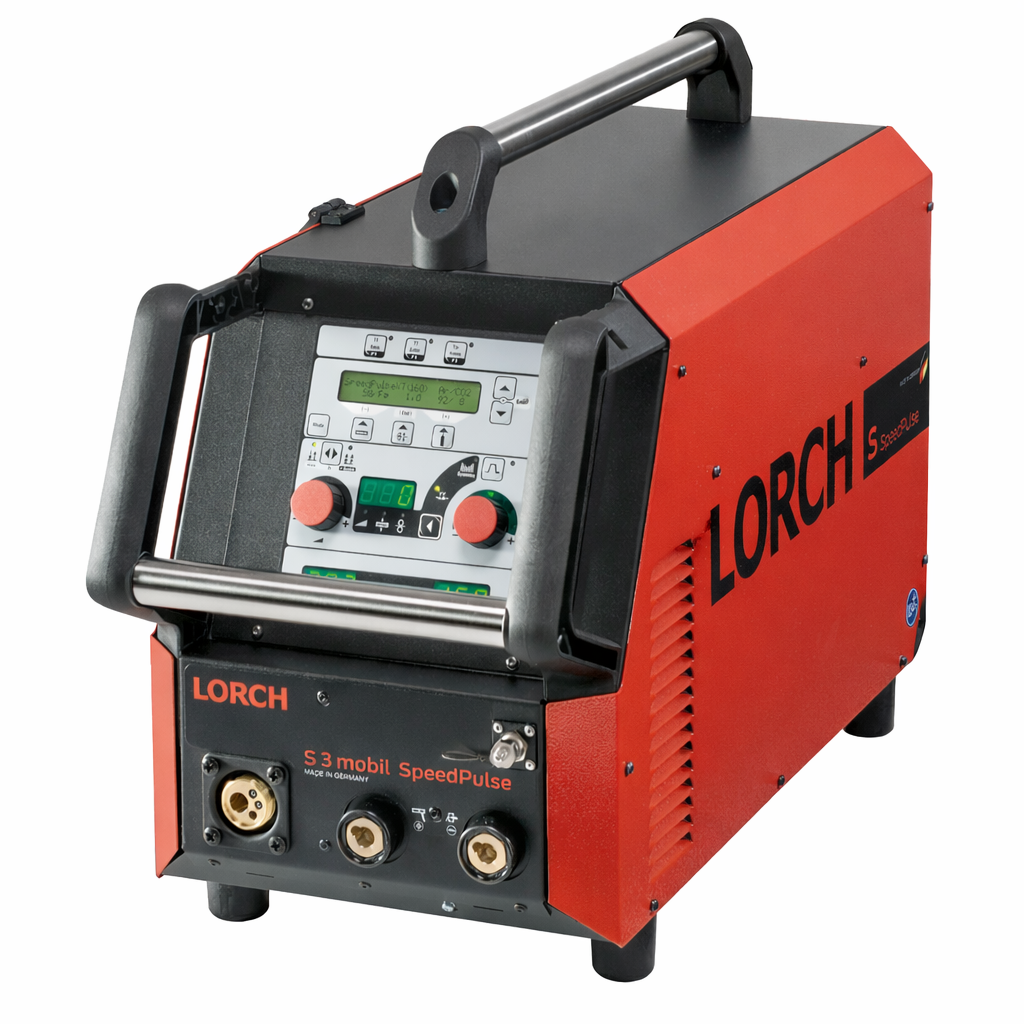

S SERIES

Features

• Stabilized welding arc and low spatter at all output range. It is suitable for both root welding at low current and filling welding of high deposition efficiency at high current.
• Strong penetration with concentrated welding arc. Heat input is lowered by 20% with smaller heat deformation for the same depth of penetration.
• Outstanding performance in gap-filling welding with low sensitivity to wire stick-out; suitable for various welding positions and unskilled welders.
• Dynamic droplet inspection and micro-control technology, which cuts output power immediately after the last metal transfer. The wire tip will be cleared to reduce time for ball-cleaning at situations of high quality welding. Better production efficiency can be ensured thanks to the higher success ratio of one-time ignition.
• Direct achievement of locking-up with a password, multiple welding parameters, even extended functions thru the hot keys on the front panel, without any necessity and extra cost of additional equipment.
• Default set of 10 welding parameters for both saving and activating. 99 sets are allowed at maximum for tailored design.
• Analog communication with robot as optional.
