OTC WELDING MACHINES
OTC WELDING MACHINES
One-Knob Synergic Control Provides Appropriate Arc Voltage for the Welding Current Selected
Inexperience Operators Can Achieve Proper Welding Conditions Without Creating Rework. The Machine Delivers a Built in Present Voltage Program to Accommodate the Amperage (Wire Feed Speed) Separate Control Mode (for Amperage & Voltage) is Also Provided as a Standard Feature.
Easy to Read and Precise Current/Voltage Scales on Remote Control
Indicates adjusted value due to the effect of the gas mixture and wire diameter.
Cutting edge "Penetration Control" is one flip of the knob away
This "Penetration Control" keeps the depth of penetration at a constant level when tip-to-work distance varies for assured quality of welding.
Instantaneous Arc Start Close to 100% From Low to High Current
Microprocessor control allows instantaneous arc start even at low current virtually every time.And it features Hot Start and Wire Slow Down Start control.This combination delivers secured arc starts.
Specification
| Model Name | CPVE-400 | CPVE-500 |
|---|---|---|
| Phase | 3PH | 3PH |
| Rated Input Voltage | 415V + 10 % | 415V = 10% |
| Rated Input Power | 16.2 KVA(15.6kW) | 23.9 KVA(22.1KW) |
| Rated Frequency | 50/60 Hz | 50/60 Hz |
| Rated Output Current | 400A | 500A |
| Rated Load Voltage(V) | 34V | 39V |
| Putput Current Range | 30-400A | 30-500A O |
| Output Voltage Range | 12-38V | 12-45V |
| Max. Open Circuit Voltage | 78V | 70V |
| Rated Duty Cycle | 60% | 100% |
| Insulation Class | H | H |
| Memory | 30 | 30 |
| Weight | 50 kg | 60 kg |
| Dimension (WxDxH) mm | 345 x580x 624 | 345 x 633 x 580 |
| Analog Remote Control | P30214Z00 | P30092Z00 | 1 |
|---|---|---|---|
| Hex Wrench | M8 | M8 | 1 |
| Heat-Shrink Tube | 40mm | 40mm | 2 |
| Glass Fuse | 2A, 250V | 2A, 250V | 1 |
| Glass Fuse | 3A, 250V | 3A, 250V | 1 |
| Ceramic Fuse | 4A, 250V | 4A, 250V | 1 |
| Fuse | 10A, 250V | 10A, 250V | 1 |
| Welding Tip | 0.8 mm | 1.2mm | 1 |
| Base Metal Side Cable | 3m | 5m | 1 |
| Gas Hose | 3m | 5m | 1 |
| Wire Feeder Side Power Cable |
3m | 5m | 1 |
| Model Name | CPVE-400 | CPVE-500 |
|---|---|---|

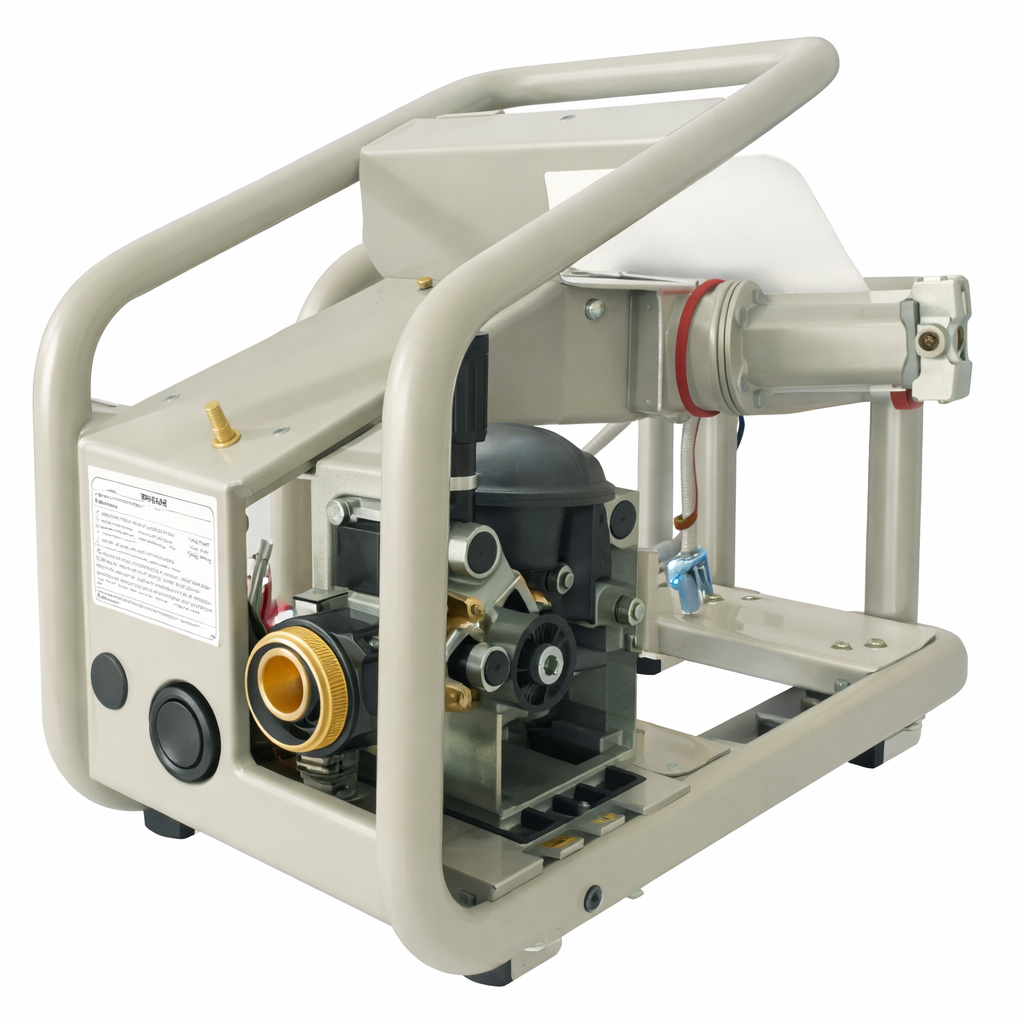

| Wire Feeder Model | CM-6201 | CM-9401 |
| Applicable Wire Size(mm) | (0.8/(0.9)/1.0)/1.2/1.4/1.6 | (0.8/(0.9)/1.0)/1.2/1.4/1.6 |
| Wire | Solid Wire, Flux-Cord Wire | Solid Wire, Flux-Cord Wire |
| Wire Feeding Speed(m/min) | Max.22 | Max.22 |
| Wire Feed Roll(mm) | 0.8/1.2 | 0.8/1.2 |
| Weight (kg) | 7 | 9 |
| Model Name | CPVE-400 | CPVE-500 |
|---|---|---|
| Welding Torch Model | WT3510-S(C)D | WT5000-S(C)D |
| Rated ....... (A) | 350 | 500 |
| Applicable Wire Size(mm) | 0.8 /0.9/1.0/1.2/1.4/1.6 | 0.8 /0.9/1.0/1.2/1.4/1.6 |
| Duty Cycle (%) | 60 (Co,), 30(MAG) | 60 (Co,), 30(MAG) |
| Cooling Method | Air-Cooled | Air-Cooled |
| Cable Length (m) | 3, (4.5), (6) | 3, (4.5), (6) |
