Machinery List

SL NO	PRESS SPECIFICATION	800 T	600 T	500 T	400 T
1	SLIDE AREA	1600 X 1600 MM	1600 X 1600 MM	2000 X 1500 MM	1600 X 1600 MM
2	BOLSTER AREA	1600 X 1600 MM	1600 X 1600 MM	2000 X 1500 MM	1600 X 1600 MM
3	SHUT HEIGHT	1200	1400	1400	1400
4	SLIDE ADJUSTMENT	700	700	700	700

PLANT III

Press Machine Details

LINE A

SL NO	M/C TONAGE	MC NAME	TYPE	TOP BED	BOTTOM BED	MAX	MIN
1	300T	RATTAN	NJ	1450 X 800	1600 X 1000	700	590
2	250T	RATTAN	NJ	1200 X 700	1450 X 900	550	450

LINE B

SL NO	M/C TONAGE	MC NAME	TYPE	TOP BED	BOTTOM BED	MAX	MIN
1	100T	PRESSMASTER	NJ	700 X 500	1000 X 630	400	280
2	80T	SEYI	NJ	560 X 460	1050 X 600	350	250

BLANKING

SL NO	M/C TONAGE	MC NAME	TYPE	TOP BED	BOTTOM BED	MAX	MIN
1	200T	RATTAN	NJ	1200 X 700	1450 X 900	500	400
2	80T	JOHN HEINA	NJ	1000 X 900	1000 X 900	450	330

BODOR

Laser Machine Specifications

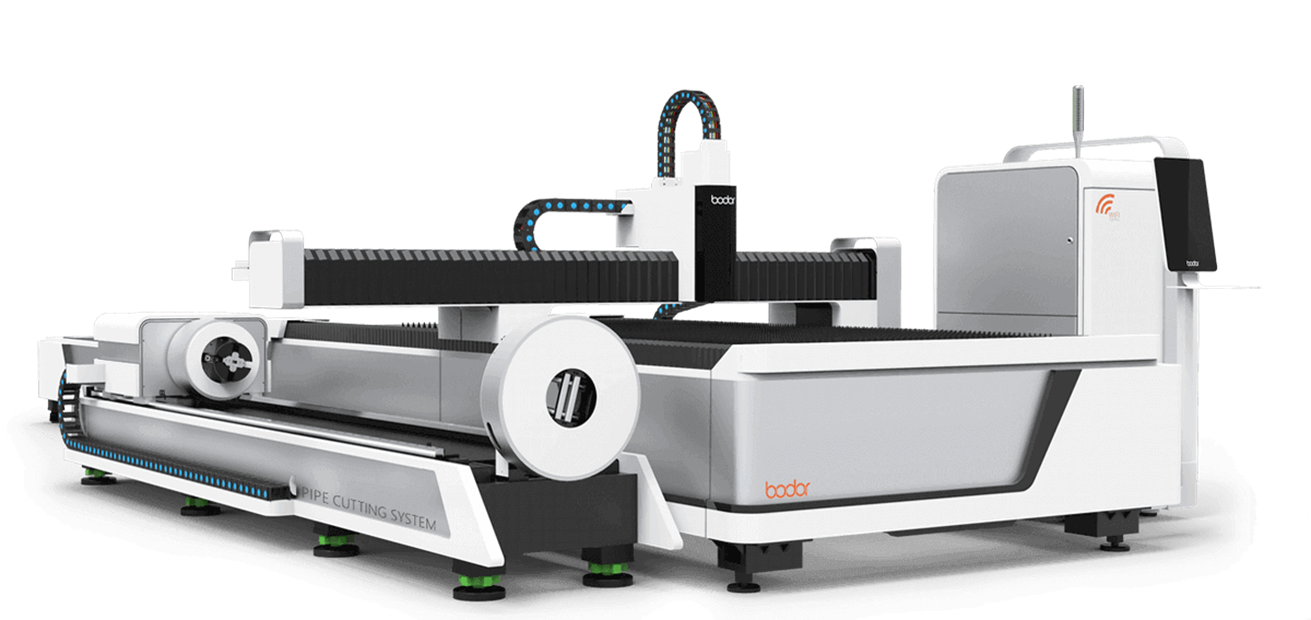

LASER CUTTING MACHINE

Laser Cutting Machine

SPECIFICATION	DETAILS
BED SIZE	1500 X 3000 MM
SHEET	1500 mm x 3000 mm x 0.5 - 12 mm
THICK TUBE	Ø20 – Ø200 x 3 m LENGTH SQ
PIPES	20 x 140 mm x 3 m LENGTH

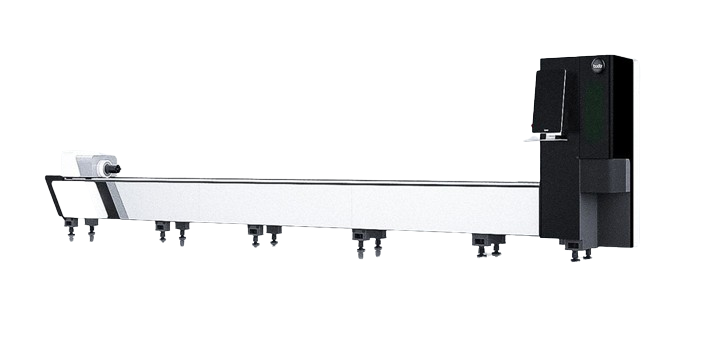

K SERIES 1.5KW

K Series Laser

SPECIFICATION	DETAILS
THICKNESS	MS 1-6 SS 1-4
THICK TUBE	20 x 230MM x 6M LENGTH
